• Raspberry Pi 3B WPC-632-PI 3-DIO

Programmable Controller IoT-Raspberry Pi 3B + DI/DO

Model : WPC-632-PI3-DIO84
• Linux OS, S/W Programmable
• API/CGI for AP layer Application
• 2 x RS-232 + 2 x RS-422/485
• Dual Power Inputs (DC Jack / TB)
• Powerful Computing capability
• On board 8 DI / 4 DO
• 4 Analog Input optional
• Web Browser configuration
• Easy installation Windows utility

4 Ports Programmable Serial to Ethernet Controller


• Linux OS, S/W Programmable

• API/CGI for AP layer Application

• 2 x RS-232 + 2 x RS-422/485

• Dual Power Inputs (DC Jack / TB)

• Powerful Computing capability

• On board 8 DI / 4 DO

• 4 Analog Input optional

• Web Browser configuration

• Easy installation Windows utility


Hardware

CPU :               ARM Cortex A53 CPU, 1.2 GHz

RAM :              1 GBytes SDRAM

ROM :              8G Bytes Flash ROM (Micro SD card)

OS :                 Linux OS, API & CGI available

Watchdog :       Built in H/W Watchdog timer

RTC :               Built in RTC

Ethernet

Port number :   1

Port Type :       RJ-45 Connector

Speed :            10 / 100 Mbps ( Auto Detect )

Protocol :         ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, PPPoE, DDNS, NTP, FTP, TELNET

Mode :             TCP Server / TCP Client / UDP

Setup :             HTTP Browser Setup (IE, Chrome, Firefox),

Security :         Login Password

Protection :      Built-in 1.5KV Magnetic Isolation

Serial Interface

Port number :   4

Port Type :       RS-232 x 1 Port ( DB9, Full ) ,

                         UART x 1 Port ( DB9, Tx, Rx, GND, PW)

                         RS-422/485 x 2 Port (Software select)

Connector :      Male DB9 x 2 / 4-pin Terminal Block x 2

Speed :            300 bps ~ 230.4 Kbps

Parity :             None , Odd , Even , Mark , Space

Data Bit :         5, 6 , 7 , 8

Stop Bit :         1 , 2

Protection :     422/485 Surge & Over Current Protection

                       Built in 15KV ESD protection for all signals

Storage Interface

Micro SD slot :   Micro SD card (for OS)

Display Interface

Port number : HDMI x 1  for Video & Audio output

USB Interface

Port number :     2

Function :          Storage, WiFi Dongle, Bluetooth Dongle

Software Features

OS Supported :    Windows 2000/2003/XP/Vista/Win 7/Win 8

Configuration :     Window Utility, Web Browser

Digital I/O

Digital Input :      8 (active High / Low selectable)

Digital Output :   4 (active High / Low selectable)

DO x 4 :             Relay output, 120V AC@10A

                          240V AC@7A, 24V DC@10A

DI x 8 :               3000V DC isolation protect

Dry Contact :     Logic level 0 : close to GND

                          Logic level 1 : open

Wet Contact :    Logic level 0 : 0 ~ 3 V

                          Logic level 1 : 10 ~ 30 V

LED                   PWR, SYS, Tx/Rx0, Tx/Rx1, Tx/Rx2, Tx/Rx3

Power  Input     DC 12 ~ 24V, 1000mA@12VDC

Environment

Temperature :   Operating:  0°C ~ 65°C (32°F ~ 149°F)

                         Storage: -10°C ~ 70°C (-14°F ~ 158°F)

Humidity :         Operating:  10% ~ 95% non-condensing

                         Storage:  5% ~ 95% non-condensing

Regulatory Approval

FCC                     Part15 Class A

CE                       EN55022 Class A, EN55024

RoHS                   Compliance

Warranty            1 Year

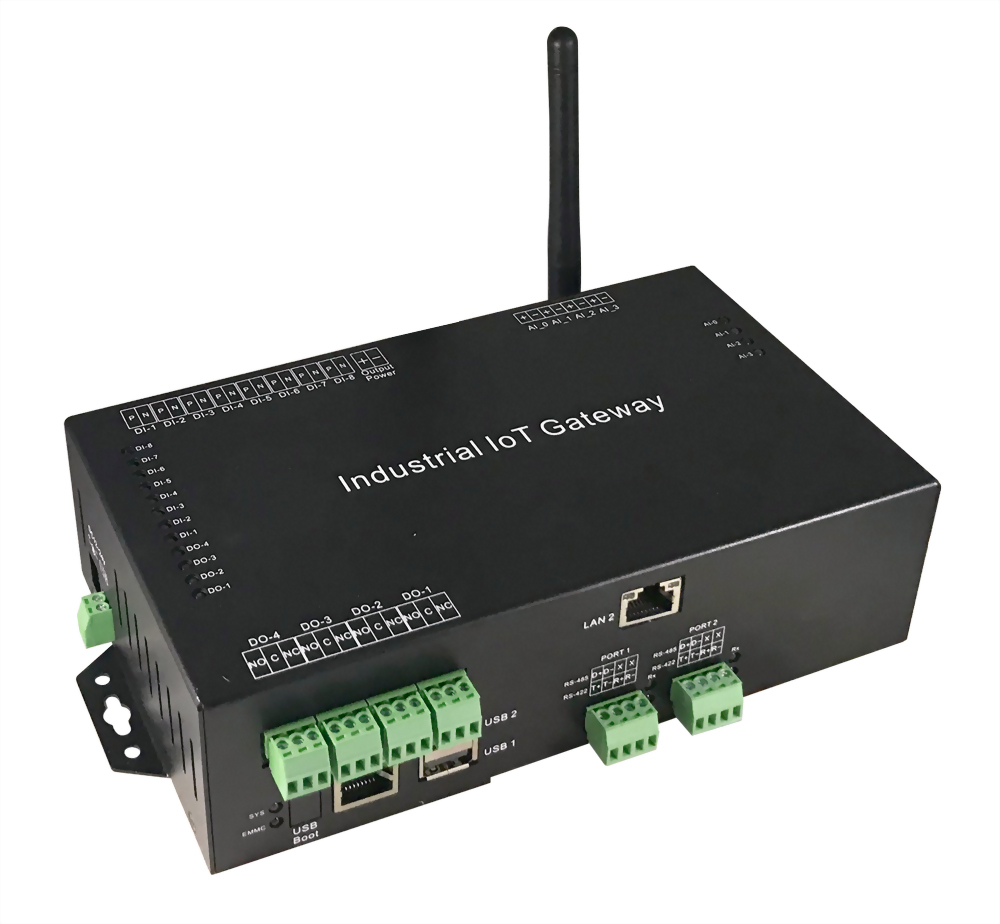

Product Image:

click above photo to get large view.

Data Sheet:

WPC-632-PI3-DIO84_DataSheet_201901a.pdf

WPC-632-PI3-DIO84-AI_DataSheet_201901a.pdf

WPC-632-PI3_extension_boards.pdf

User's Manual:


Drivers:

upon request.
