UART To Ethernet Module 1 port
• RS-232 Serial interface
• Operation Modes : TCP server; TCP client;
UDP; Virtual COM; Pairing
• Built in 15KV ESD protection for all signals
• Serial port surge & over current protect

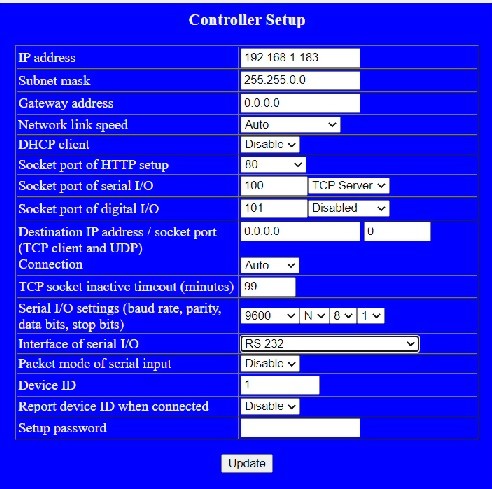

• Web Browser configuration
• Easy installation Windows utility
• On line F/W upgrade

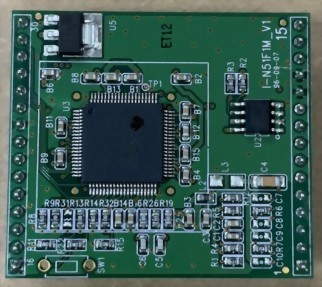

RS-232 TTL TO Ethernet Embedded Module
Digital TTL I/O Controlled Via Ethernet
Ø CPU : 8-bit SyncMos SM5964 , 36.864 MHz
Ø RAM : 32 KBytes ROM : 64 KBytes
Ø Ethernet
² Port : RJ-45 Connector
² Speed : 10/100 Mbps
² Protocol : ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
² Mode : TCP Server/Client ; UDP : Broadcast
² Setup : HTTP Browser Setup (IE & Netscape)
² Security : Setup Password
² Protection : Built-in 1.5KV Magnetic Isolation
Ø Serial Port
² Port : RS232 TTL * 1 Port
² Speed : 300bps〜115.2kbps
² Parity : None, Odd, Even
² Data Bit : 7, 8
² Stop Bit : 1 , 2

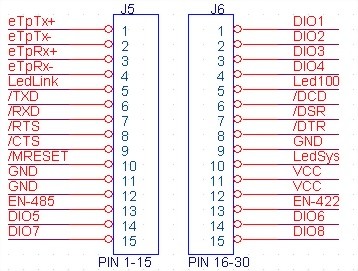

² RS-232 Pins : RX , TX , GND , RTS , CTS , DTR , DSR , DCD
Ø Digital I/O Port
TTL Digital I/O * 8
Ø Firmware On-lined Updated Via Ethernet
Ø Power : DC 5 V , 200mA
Ø Led-Lamp : SYS(PWR) , LAN , LAN Rx , LAN Tx,
Ø Environment : Operating Temp: 0℃〜50℃ Storage Temp : -10℃〜70℃
