• Modbus Gateway (Ethernet+WiFi) WPC-832-4-I-Modbus

WPC-832-4-I-Modbus

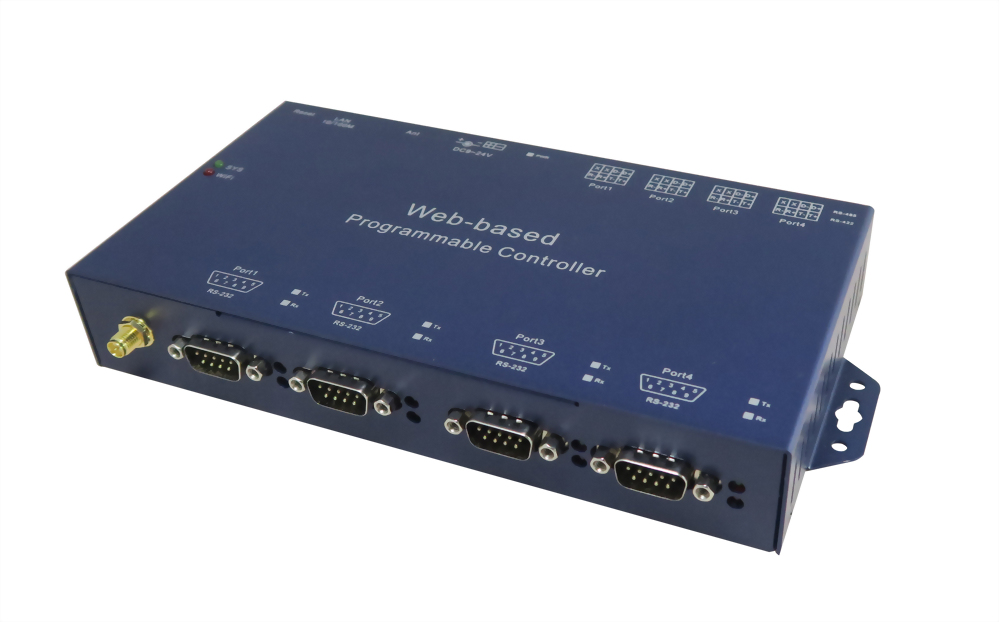

Model : WPC-832-4-I-Modbus


• Support Modbus TCP to Modbus, RTU/ASCII Networks

• 4 Modbus modes Browser selectable

• 8 simultaneous TCP Master, 32 simultaneous Request for each TCP Master

• Web Browser configuration

• Easy installation Windows utility

• On line F/W upgrade

• 3000VDC Isolation


  • WPC-832-Modbus  : 2 ports Modbus TCP To RTU/ASCII Gateway
  • CPU : MT7688AN MIPS CPU , 580 MHz
  • RAM : 128M Bytes DDR2 RAM
  • ROM : 32M Bytes Flash ROM
  • OS :  Open Wrt Linux
  • Ethernet * 1

²   Port Type : RJ-45 Connector

²   Speed : 10 /100 M bps  ( Auto Detecting )

²   Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP

²  Protocol DNS , NTP

²   Mode : TCP Server / TCP Client / UDP

²   Setup : HTTP Browser Setup (IE & Netscape) ,  Console

²   Security : Setup Password

²   Protection : Built-in 1.5KV Magnetic Isolation

  • WiFi port *1

2.4G WiFi IEEE 802.11 b/g/n

Support  AP / Station

  • Serial Ports *4

²   Port : RS – 232/422/485 * 2 Port   ( RS-232 - RX/TX only )

²   Port : RS - 422 / 485  ( Surge Protect )

²   Speed300 bps ~ 230.4 K bps

²   ParityNone , Odd , Even

²   Data Bit5 , 6 , 7 , 8

²   Stop Bit : 1 , 2

²   RS-232 Pins : Rx , Tx , GND

²   RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )

²   RS-485 : Data+ , Data- ( Surge Protect )

²   15KV ESD for all signals

²   3000V DC Isolation (option)

  • Watch Dog Function
  • Power : DC 9~32 V , 1000 mA  1000mA@12V, support DC Jack & Terminal Input
  • Led Lamp :  SYS (PWR) , LAN , RX , TX
  • Environment : Operating Temperature: -2070

Storage Temperature : -2580

  • Dimensions: 198 * 110 * 34 mm ( W * D * H ), W+16mm x2 for din rail extension.
  • Weight :  450 gm
  • RoHS : Compliant with RoHS
  • Regulatory Approvals : EMC :  FCC Class A, CE Class A
  • WARRANTY :  1 year
