Digital I/O To LoRaWAN

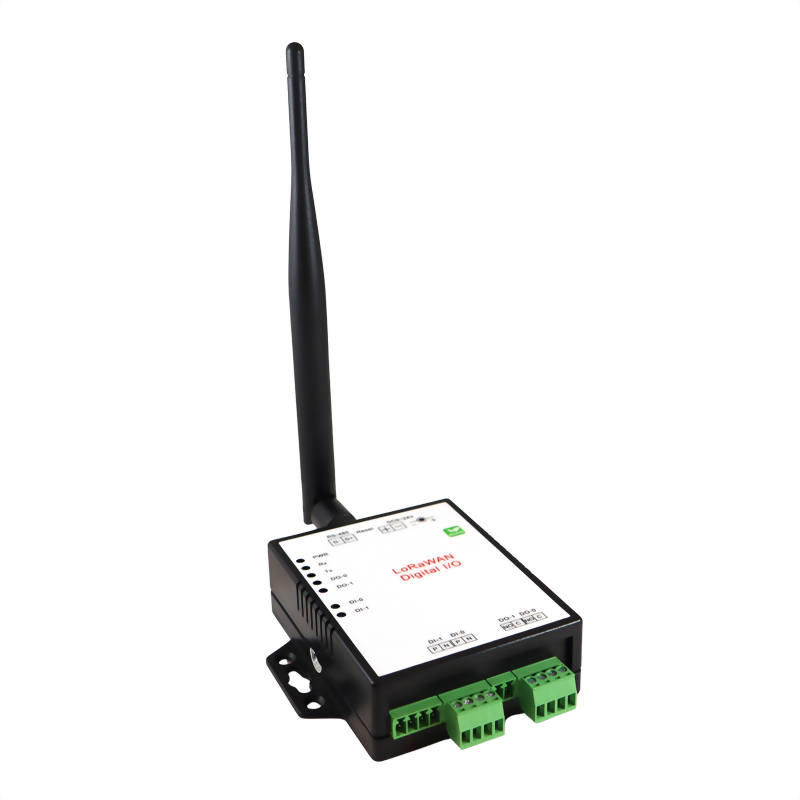

• LR-201-DIO-WAN : LoRaWAN Digital I/O Controller

• CPU : 32 bits MCU ,160 MHz , 400KB SRAM, 380KB Flash ROM

• Support LoRaWAN 1.0.2

• LoRa : Semtech SX1262

• Freq. : ISM band 863 ~ 928MHz

• Receiver Sensitivity : -139 dBm

• Transmit Output Power : 22 dBm

• Deep Sleep Current : 10uA

• TX current < 140 mA@20 dbm , RX current < 10 mA

• Antenna : SMA Type , 2 dBi , changeable

• Distance : Up To 1500 Meters in free space

• Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK)

• Application mode : Star

• Digital I/O

• Digital Input * 2

3000VDC Isolation Protect ( Active High /Active Low Selectable )

Dry contact : Logic level 0 : close to GND , Logic level 1 : open

Wet contact : Logic level 0 : 0~3 V , Logic level 1 : 10 ~ 30 V

• Digital Output * 2

Relay ( Active High /Active Low Selectable )

120V AC@0.5A , 240V AC@0.5A , 24V DC@1A

• Setup Tool : Windows Utility

• Power : DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V

• Led Lamp : SYS (red) , Pairing (green) , Rx(red) , Tx(green),Pair (Green)

• Environment: Operating Temperature:-10℃〜70℃

Storage Temperature:-20℃〜85℃

• Dimensions : 100 * 90 * 25 mm ( W * D * H )

• Weight : 150 gm ( not include power )
