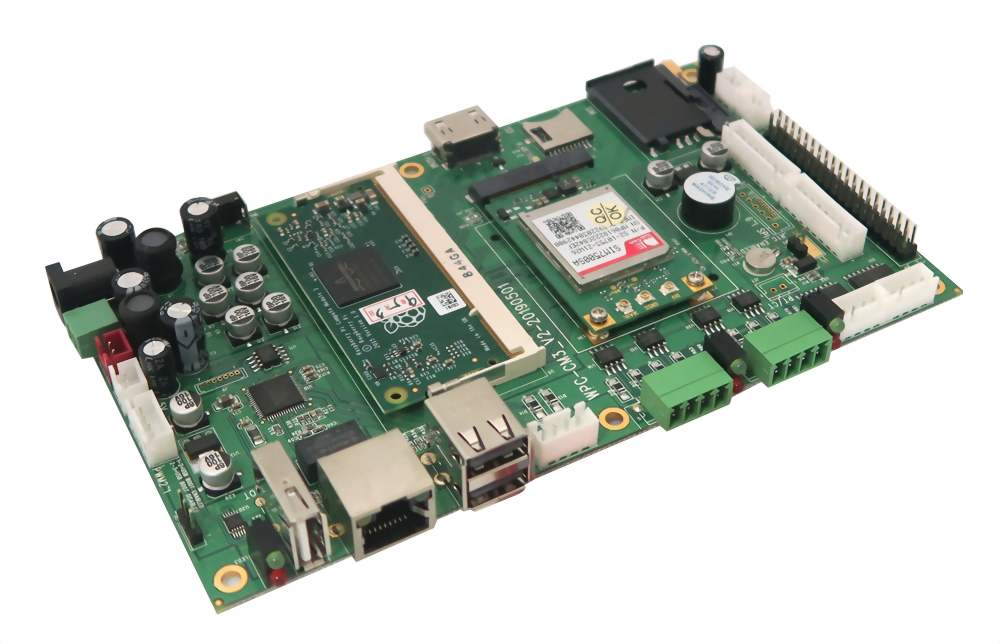

Single Board Computer Extension Board

• For embedded with Raspberry Pi CM4
• Wide Range Input Power (DC 9 ~ 32V)
• Multiple I/O Interfaces (see pin assignment)
• M.2 key B for 5G (optional)
• M.2 key M for PCIe SSD / AI (optional)
• Mini-PCIe (for 4G/NB-IoT/LoRa)

* Raspberry Pi is a trademark of the Raspberry Pi Foundation.

Connectivity

• 5G
        M.2 key B USB 3.0 / PCI-E for 5G (optional)
• 4G
        Mini-PCIe : USB 2.0 for 4G / NB-IoT / LoRa
        (optional)
        Nano SIM Slot for 5G / 4G / NB-IoT
• Ethernet
        10/100/1000 Mbps Giga Lan * 1 (RJ45)
        10/100Mbps * 1 (RJ45)
        Wifi 802.11b / g / n / ac (2.4/5GHz) (optional)

Interface

USB 3.0 * 2, USB 2.0 * 2I2C *1  (on PCB)
SPI *1  (on PCB)
PWM * 2 (on PCB)
M.2 key M for PCIe SSD (optional)

Serial Port

Port 1: RS-232/422/485 * 1
Port 2: RS-232/485        * 1

Others

RTC : Real Time Clock * 1 (with Battery)

Buzzer * 1

Watch Dog Timer

Reset Button * 1

MIPI CSI 2-lane * 1 (optional)

Fan - DC 12V (optional)

Digital Input / Digital Output

• Digital Input * 1 Pin  (Active High / Active Low Selectable)
         Dry contact : Logic level 0 : close to GND,
                              Logic level 1 : open
         Wet contact :  Logic level 0 : 0 ~ 3 V,
                                Logic level 1 : 10 ~ 30 V

• Digital Output * 1 Pin  (Active High / Active Low Selectable)
        Relay 120VAC @0.5A, 240VAC @0.25A, 30VDC @1A

Video Output

        Micro HDMI * 1 (4Kp60fps with audio)

Mechanical and Environment

       Operating Temperature: -20℃〜75℃
       Storage Temperature :   -25℃〜80℃
       Dimensions : 170 * 110 * 30 mm ( W * D * H )
       Weight : 950 gm
       Housing: metal

Power

       DC 9~32V, 1000mA@12V (DC Jack or Terminal Input)

LED

PI PWR / EMMC / Serial / DI / DO

SYS-Customer defined / 5G / 4G

Order Information

       WPC-632-PI CM4-EB-B ( for M.2 KEY B )
       WPC-632-PI CM4-EB-M ( for M.2 KEY M )

Warranty

• Warranty period : 1 year.
