• Bluetooth E-P132-B

Bluetooth 2.1 To RS-232 Converter

Model : E-P132-B1
• Support Bluetooth 2.1+EDR
• Bluetooth Windows utility
• Support up to 100 meters
• Compact design
• 5V DC Jack for stable power input
• LED indicators for Bluetooth pairing


• Support Bluetooth 2.1+EDR

• Bluetooth Windows utility

• Support up to 100 meters

• Compact design

• 5V DC Jack for stable power input

• LED indicators for Bluetooth pairing


Serial Interface 1 port

Port Type : RS-232 x 1 Port ( DB9 )

Connector : Male DB9 / 4-pin Terminal Block

Speed 300 bps ~ 115.2 Kbps

Parity : None , Odd , Even , Mark , Space

Data Bit : 8

Stop Bit : 1 , 2

RS-232 : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD

Power

Input: DC 5V, 200mA@ 5VDC

Utility Support

Windows 98SE/2000/XP/2003/VISTA/WIN 7/

WIN 8

Bluetooth Interface

Port number : 1

Spec : BT 2.0+EDR (Enhance Data Rate)

SPP : Support (Serial Port Profile)

Frequency : 2.4 ~ 2.483 Ghz

Distance : up to 100M

Regulatory Approval

FCC Part15 Class A

CE EN55022 Class A, EN55024

RoHS Compliance

Warranty 1 Year

Environment

Temperature : Operating: 0°C ~ 65°C (32°F ~ 149°F)

Storage: -20°C ~ 70°C (-4°F ~ 158°F)

Humidity : Operating: 10% ~ 95% non-condensing

Storage: 5% ~ 95% non-condensing

Dimension & Weight

Dimension 65 x 30 x 12 mm

Weight 35g

LED SYS (red), Pairing (green),

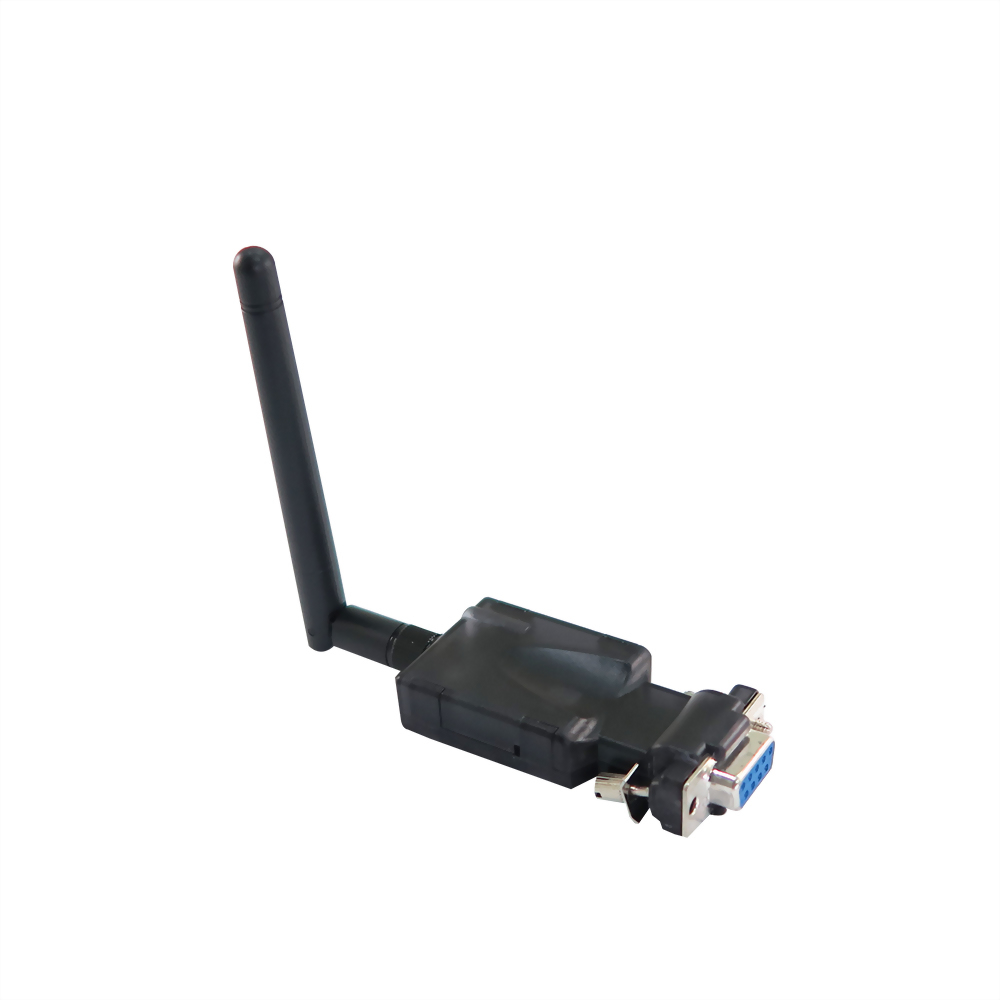

Product Image:

click above photo to get large view.

Data Sheet:

E-P132-B1_DataSheet.pdf

User's Manual:

E-P132-B1_UsersManual.pdf

Drivers:

upon request.
