• Ethernet Switch IES-501-I

Ethernet Switch 5 ports

Model : IES-501-I
* Unmanaged
* Wide operating temperature range (IP175DLFI) -40°C to 85°C
* Up to 2K MAC addresses
* Support auto-polarity for 10Mbps
* Broadcast storm protection
* Auto MDI-MDIX
* Layer2-4 Multi-Field classifier, Support traffic policy
* 5 to 30VDC Power inputs
* Industrial metal case
* Supports Terminal Blockor DC-Jack (alternative)
* Low power consumption

* Unmanaged

* Wide operating temperature range (IP175DLFI) -40°C to 85°C

Up to 2K MAC addresses

Support auto-polarity for 10Mbps

Broadcast storm protection

Auto MDI-MDIX

Layer2-4 Multi-Field classifier, Support traffic policy

5 to 30VDC Power inputs

Industrial metal case

Supports Terminal Blockor DC-Jack (alternative)

Low power consumption


Technology

Standards: IEEE802.1Q  IEEE802.3  IEEE802.3u  IEEE802.3x

Max forwarded packet length 1792 bytes (MAX)

Address Table Size:

2K MAC addresses

4-way Hashing Algorithm

Individual/Multicast MAC

Processing Type:

Store-and-Forward

Half-duplex back-pressure and IEEE802.3x full-duplex flow control

Power

Input Voltage: 5 to 30VDC Terminal Block or DC-JACK

Reverse Polarity Protection

Overload Current Protection

Power Consumption: 2W Max. 0.35A@5VDC

Mechanical

Casing: metal case

Dimensions: 70mm (W) x 90mm (D) x 28mm (H)

Weight: 0.20Kg (0.44lb.)

InstallationScrew Terminal Block or DC-JACK

Environment

Operating Temperature: -20°C to 70°C

Storage Temperature: -40°C to 85°C

Ambient Relative Humidity: 5% to 95% (non-condensing)

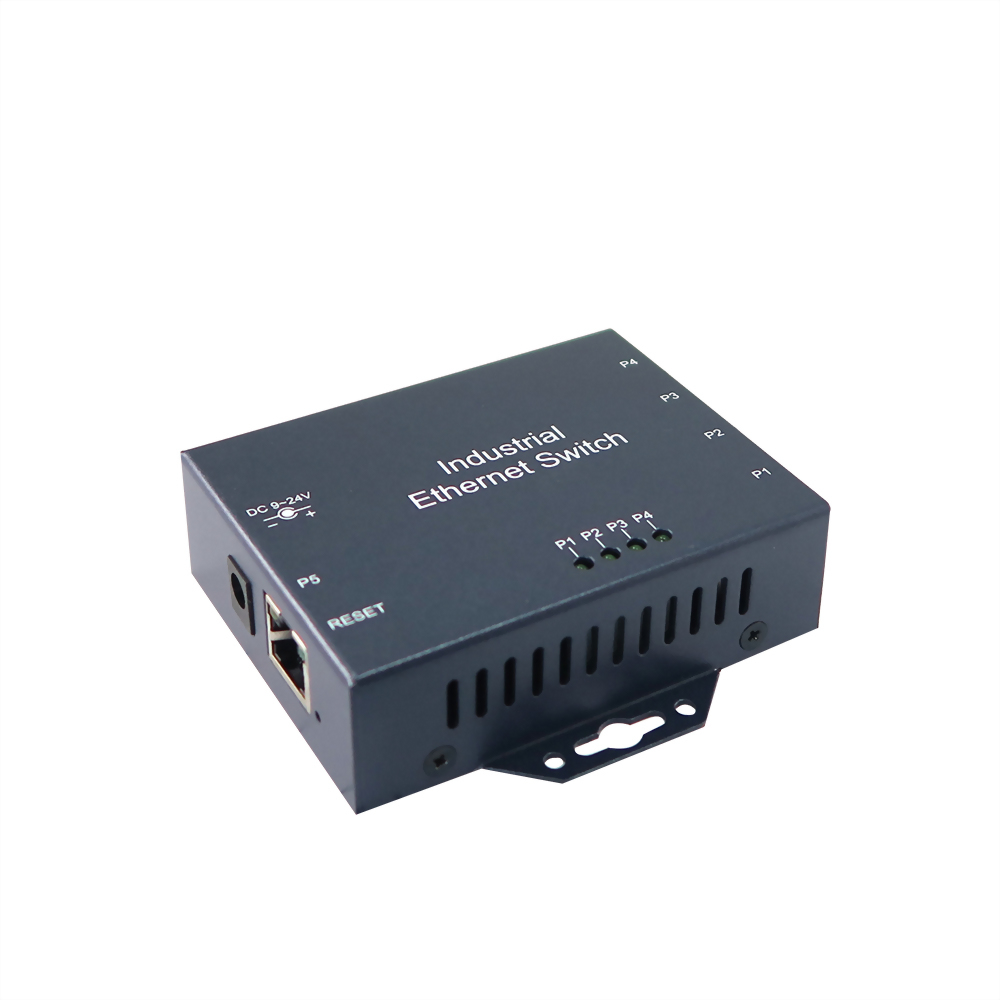

Product Image:

click above photo to get large view.

Data Sheet:

IES-501-I_SpecSheet_201010a.pdf

User's Manual:

PLUG & PLAY

Drivers:

upon request.
